Fiber Optic Patch Panel





»» UL Listed 1863

Product Description

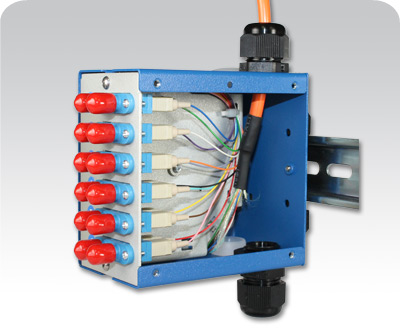

Compact DIN-Rail or surface mount fiber optic patch panel. Compact size allows minimum space requirements within control cabinetry. Device includes a splice tray to allow fusion splicing of field cabling (pigtails sold separately). Device features a sliding faceplate with capture mechanism to allow patch panel to be kept open “hands-free

The following SNAP Compact Fiber Optic Patch Panel include 6 each adapters  PDF Brochure

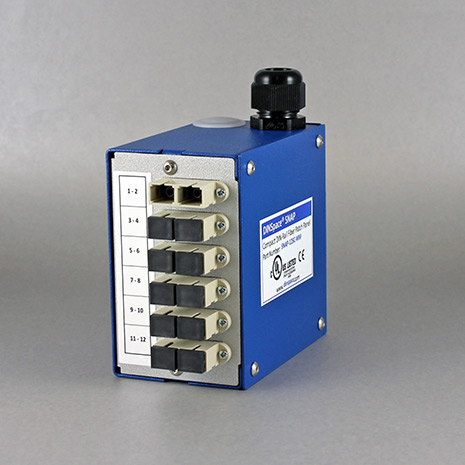

SNAP-12SC-MM MultiMode SC/SC Compact Fiber Optic Patch Panels
+
SNAP-12SC-MM
:   lbs
!

DINSpace SNAP Compact Fiber Optic Patch Panel with 6ea. Singlemode SC/SC Duplex Adapters, UL/CE.



Data Sheet

SingleMode SC/SC Compact Fiber Optic Patch Panels
+
SNAP-12SC-SM
:   lbs
!

DINSpace SNAP Compact Fiber Optic Patch Panel with 6ea. Singlemode SC/SC Duplex Adapters, UL/CE.



Data Sheet

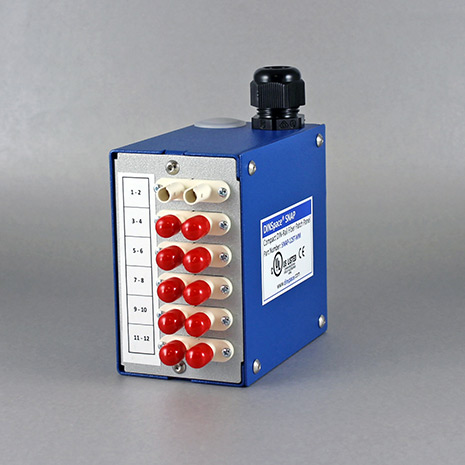

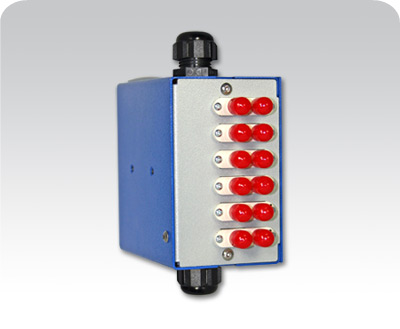

MultiMode ST/ST Compact Fiber Optic Patch Panels
+
SNAP-12ST-MM
:   lbs
!

DINSpace SNAP Compact Fiber Optic Patch Panel with 6ea. Multimode ST/ST Duplex Adapters, UL/CE.



Data Sheet

SingleMode ST/ST Compact Fiber Optic Patch Panels
+
SNAP-12ST-SM
:   lbs
!

DINSpace SNAP Compact Fiber Optic Patch Panel with 6ea. Singlemode ST/ST Duplex Fiber Adapters, UL/CE.

Data Sheet

MultiMode ST/SC Compact Fiber Optic Patch Panels
+
SNAP-12ST-SC-MM
:   lbs
!

DINSpace SNAP Compact Fiber Optic Patch Panel with 6ea. Multimode ST/SC Duplex Adapters, UL/CE.



Data Sheet

SingleMode ST/SC Compact Fiber Optic Patch Panels
+
SNAP-12ST-SC-SM
:   lbs
!

DINSpace SNAP Compact Fiber Optic Patch Panel with 6ea. Singlemode ST/SC Duplex Adapters, UL/CE.



Data Sheet

MultiMode LC/LC Compact Fiber Optic Patch Panels
+
SNAP-24LC-MM
:   lbs
!

DINSpace SNAP Compact Fiber Optic Patch Panel with 6ea. Multimode LC/LC Quad Fiber Adapters, UL/CE.



Data Sheet

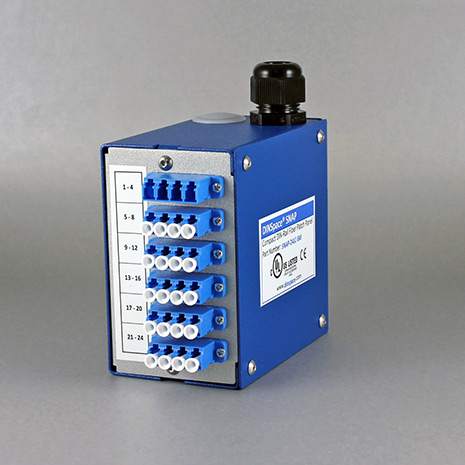

SingleMode LC/LC Compact Fiber Optic Patch Panels
+
SNAP-24LC-SM
:   lbs
!

DINSpace SNAP Compact Fiber Optic Patch Panel with 6ea. Singlemode LC/LC Quad Fiber Adapters, UL/CE.



Data Sheet

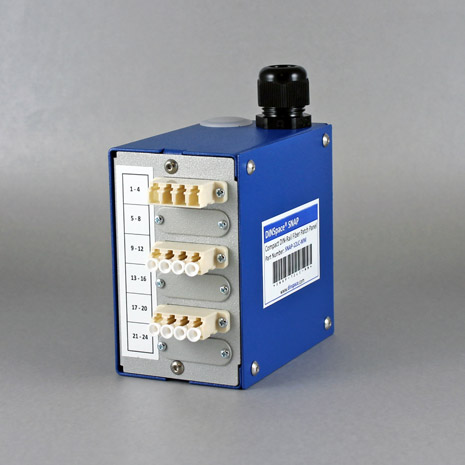

SNAP-12LC-MM
+
SNAP-12LC-MM
!

DINSpace SNAP Compact Fiber Optic Patch Panel with 3ea. Multimode LC/LC Quad Fiber Adapters, UL/CE.



Data Sheet
