19" Rack-Mount Adapters


Product description  SNAP 19” Rack-mount DIN-Rail adapter brackets allow you to mount standard 35mm DIN-Rail devices within your 19”rack or cabinet. Constructed of heavy-duty powder-coated 16-gauge steel, the adapter brackets each support up to 50 pounds of weight. Available in two configurations, the 5U version features a built-in cable management system to help keep your cables organized, while the slender 4U design allows you to optimize your cabinet storage capacity. PDF Brochure

Ambient Conditions:          Operating temperature: -40°C - 80°C, Storage/transport temperature: -                                              40°C - 80°C

Mechanical Construction:  Mounting: 19” rackmount via four mounting holes, Weight: 5lbs.,

                                             Protection class: IP20, DIN-Rail Depth - 7.5mm

Materials of Construction: Body: 16-gauge powder-coat painted steel, DIN-Rail: Steel,

                                             Optional Cable Management: Thermoplastic

Warranty:                             Lifetime warranty on materials and workmanship

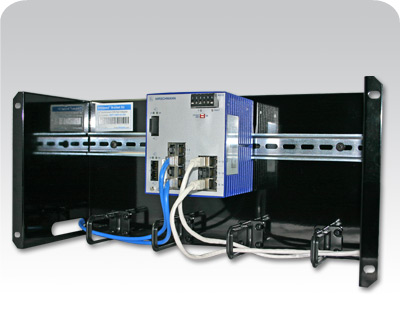

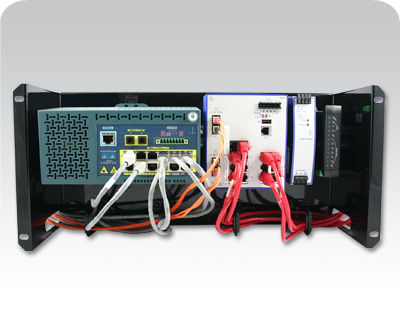

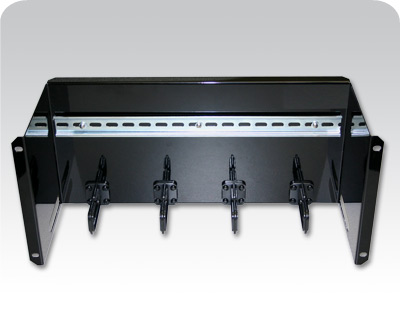

5U- 19" Rackmount DIN rail Adapter

+
BRKT-19DR-5U-CM
:   lbs
!

DINSpace 19-inch Rackmount DIN-Rail Adapter with cable management, 5U.



Data Sheet

(H x D x W) 8.65” x 6.75” x 19”

4ea. pre-mounted cable management guides

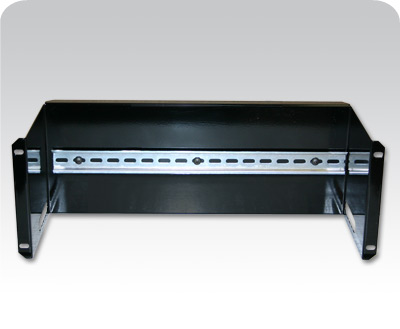

4U- 19" Rackmount DIN-rail Adapter
+
BRKT-19DR-4U
:   lbs
!

DINSpace 19-inch Rackmount DIN-Rail Adapter without cable management, 4U.



Data Sheet

(H x D x W) 6.75” x 6.75” x 19”
