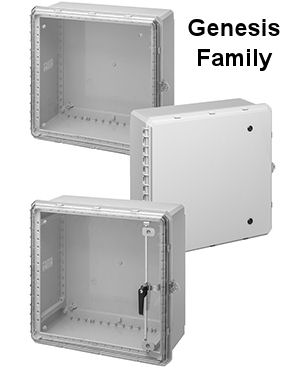

Genesis Line

  Integra's Largest NEMA 4X 24X24X10 inches Polycarbonate  Enclosure Features

Click Here for catalog information

The Integra Genesis series represents the beginning of best medium sized non metallic enclosures available. The unmatched flexibility of the interior of this enclosure combined with off the shelf accessories make the first of the Genesis series enclosures ideal for almost any application.

  • Cover - opaque and clear lids
  • Closure Options -  non-metallic latch, 3-point latch, and 1/4" turn latch.
  • Best in Class Hinge - Strong standard stainless steel pin, piano style hinge
  • Flexible Interior Mounting – Features  Multi-Max Rail System
  • Interior Rear wall mounting – bosses for direct mounting of devices
  • UL NEMA 4X

       Click Here for Accessories

Genesis Line
+

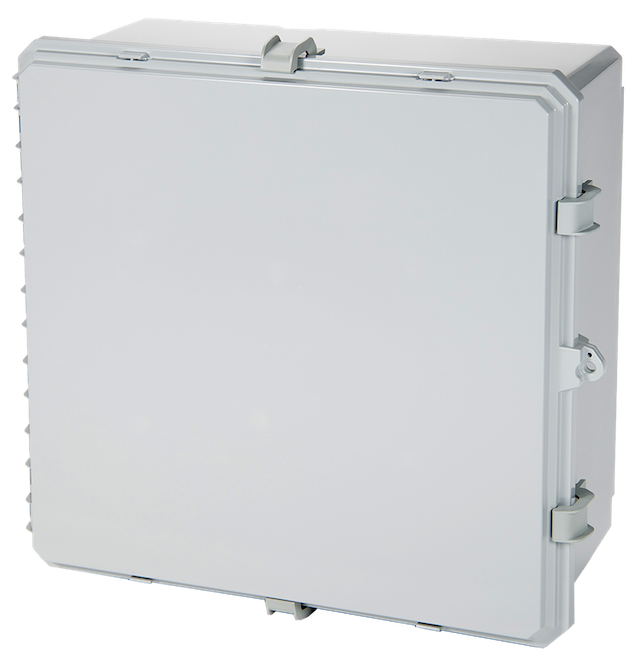

G242410
!

Opaque color, 4 Latches, 4 MulMax rails, Mtg Flgs, Frame.

Data Sheet:

Genesis 24"x24"x10" enclosure includes polycarbonate enclosure with opaque cover, frame stiffner (pre-installed), set of four multi-max rails, two mounting flanges (with screws), and four latches.

  • Genesis Line
  • Polycarbonate Enclosure
  • NEMA/ UL 6P (IP68)
  • Opaque
  • Hinged
  • Mounting Flange
  • Non-Metallic Locking Latch

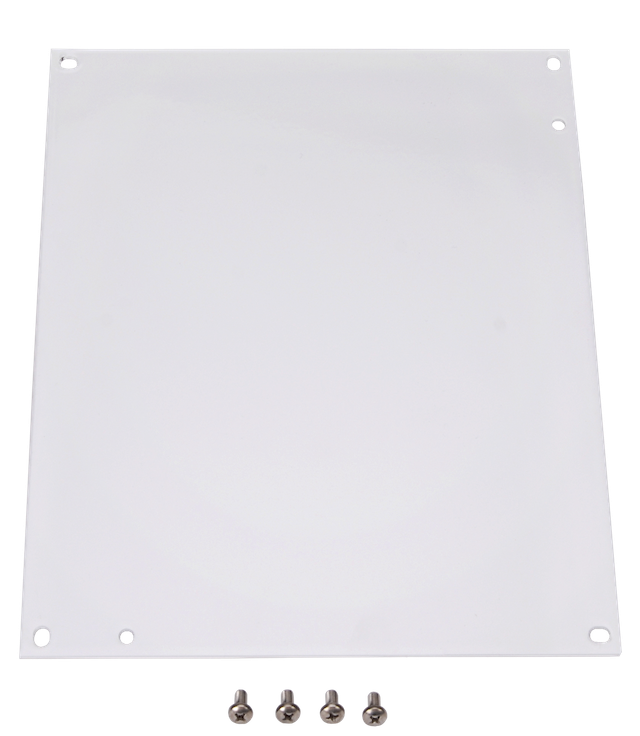

Steel back panel/swing panel

+
SBP-2424
!

Genesis Line:

Steel back panel/swing panel for Genesis 24"x24"x10"

Data Sheet:

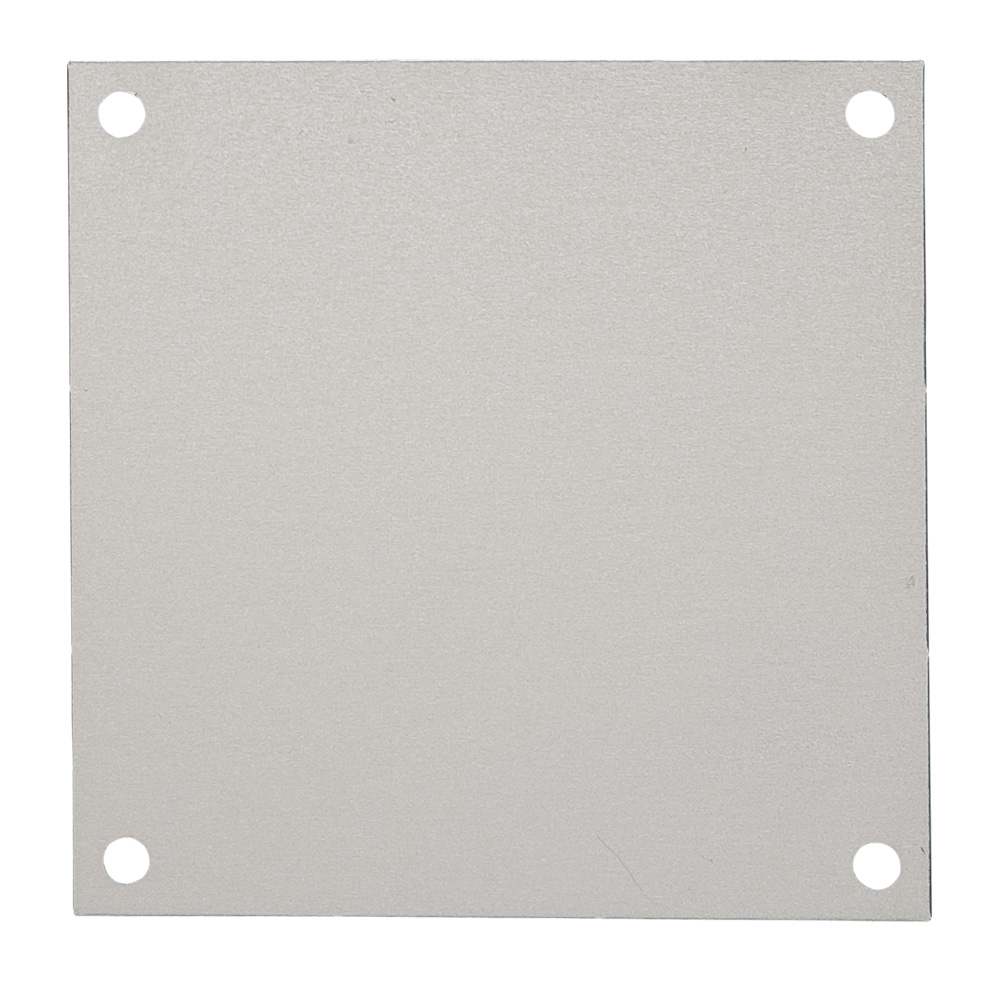

Aluminum back panel/swing panel

+
ABP-2424
:   lbs
!

Genesis Line:

Aluminum back panel/swing panel for Genesis 24"x24"x10"

Data Sheet:

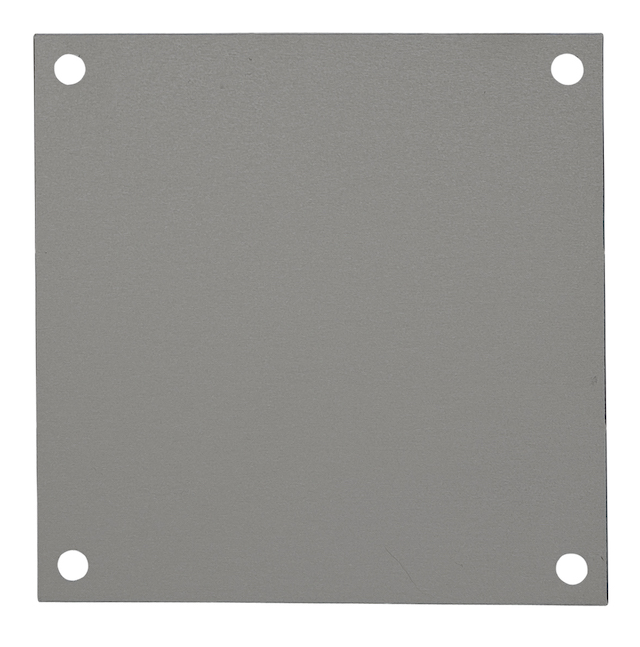

PVC back panel/swing pane

+
PVCBP-2424
!

Genesis Line:

PVC back panel/swing pane for Genesis 24"x24"x10"

Data Sheet:

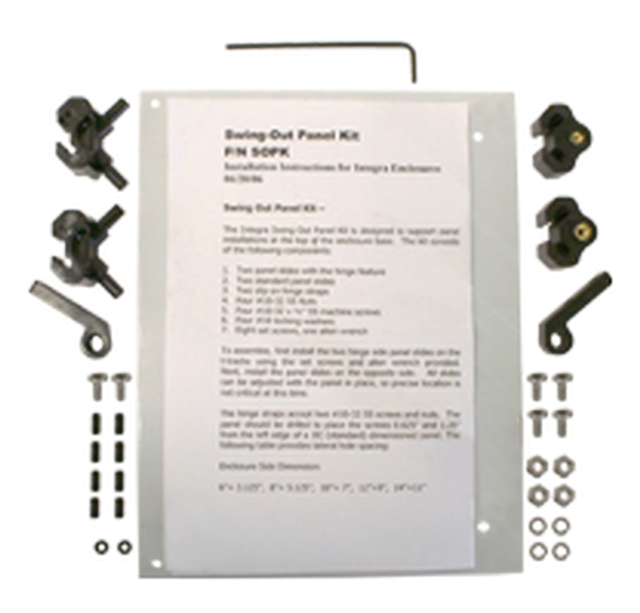

Swing Out Kit for 24"x24"x10"
+
GSOPK24
:   lbs
!

24" aluminum hinge for Swing Panel (use standard back panel as swing panel).

Swing Out Kit for 24"x24"x10" Enclosures.  Kit Includes: Aluminum Hinge for Swing Panel 24", panel pads (KIT-GPP) and hardware Panel sold separately Includes Four Mounting Screws

24"x24"x10" Mounting Flange Set
+
GMFLK24-SET
!

24"x24"x10" Mounting Flange Set (set of 2 plus hardware).

Date Sheet:

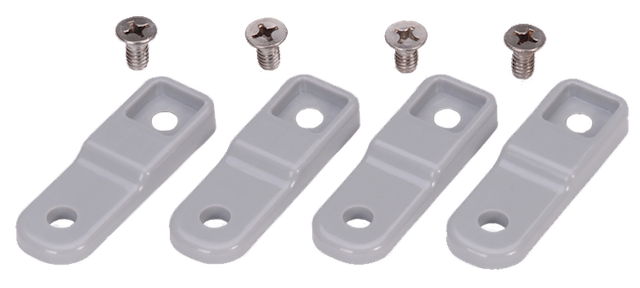

Mounting Feet Kit - Premium Line-Gray
+
MFK-G
!

Mounting Feet Kit - Premium Line-Gray

Includes Four Mounting Screws.

Data Sheet:

Multi-Max Rails with screws.
+
KIT-GMMR10
!

Genesis Line:

Multi-Max Rails with screws - 10" depth (set of 4 with screws).

Used with Genesis 24"x24"x10" enclosure.

Includes Four Mounting Screws.
