New! Condor Series Ultra-Long Range Ethernet for Reliable Connectivity

ELPRO is proud to announce the release of the CONDOR SERIES line of high speed licensed radio telemetry products. The Condor Series Ethernet Modem & Gateway variant improves on the Ethernet modem product line by significantly increasing the data throughput to an industry-leading 140kbps at 25kHz channel in licensed and licence free applications (with compression). The Condor Series products come in four easy-to-select frequency bands:

• 148MHz – 174MHz,
• 340MHz – 400MHz,
• 400MHz – 480Mhz,
• 470MHz – 520MHz.
• 894MHz – 960MHz

With up to 10W transmit power, an improved configuration software for seamless network setups, and advanced cybersecurity features that meet the most stringent standards.

Ultra-Long Range Ethernet for Reliable Connectivity

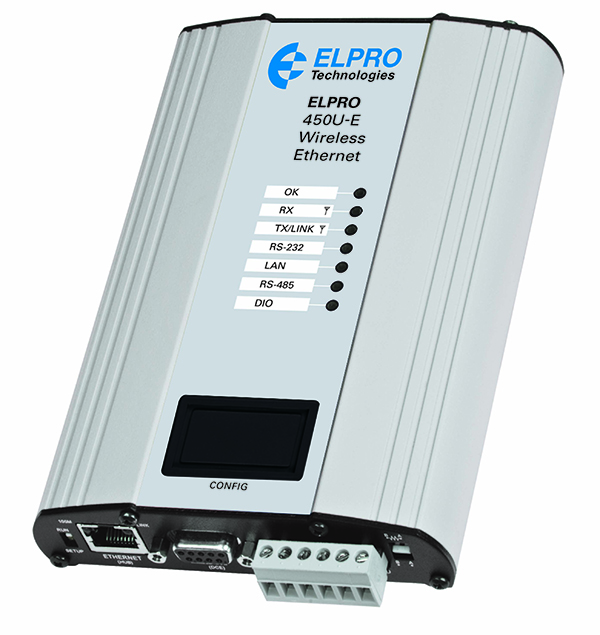

The ELPRO 450U-E Wireless Ethernet Modem is a robust, licensed and license-free wireless transceiver capable of ultra-long range communications. Operating at 360 to 512MHz, and up to 5.0W, the ELPRO 450U-E is optimized for throughputs of up to 19.2kbps which provides robust and secure two-way wireless communications in extremely challenging outdoor environments over obstructed paths typical of remote monitoring and control applications. Capable of operating in Access Point/Client configuration, functioning as a network Bridge/Router, or serving as a Serial Server (RS232/485), the ELPRO 450U-E offers node to node deterministic mesh network repeatability for further range and multiple channel spacing options to increase network scalability. Integrated Modbus server capability allows seamless integration with smart sensors, RTU’s or I/O expansion through the use of ELPRO 115S Expansion modules.

The 905U-E forms part of ELPRO’s Wireless Ethernet modem range and is an ideal solution for distance Ethernet connections in process/ automation applications connecting to PLC’s, DCS/ SCADA, dataloggers or field instruments with an RS232/ 485 and/or RJ45 port/ interface.

As with all of the Ethernet series, ELPRO’s Ethernet modems are capable of being programmed to act in Router/ Bridge, AP/ Client and serial server (RS232/ 485) modes. Filtering/ security measures include MAC address, IP filtering and encryption to 128 bit AES military standard. Additional I/O flexibility can be achieved when combined with 115S expansion products.



 The ELPRO 945U-E Wireless Ethernet Modem is a robust, license-free wireless transceiver capable of long range and high bandwidth communications. Operating at 900MHz and up to 630mW, the 802.11 standards-based ELPRO 945U-E is optimized for throughputs of up to 54Mbps which provides robust and secure two-way wireless communications in challenging outdoor environments typical of industrial monitoring and control applications..

Capable of operating in Access Point/Client configuration, functioning as a network Bridge/Router, or serving as a Serial Server (RS232/485), the ELPRO 945U-E offers node to node deterministic mesh network repeatability for further range and multiple channel spacing options to increase network scalability. Integrated Modbus server capability allows seamless I/O expansion through the use of ELPRO 115S Expansion modules.

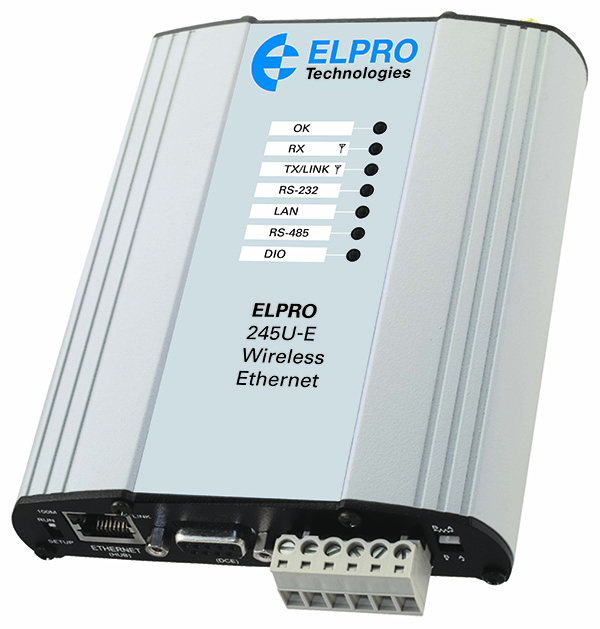

Wireless Ethernet Modems are robust, license-free wireless 802.11 standards compliant transceiver capable of high bandwidth communications. Operating at 5GHz and up to 630mW for the 245U-E-A1 or 2.4GHz and upto 630mW for the 245U-E-G1, the ELPRO 245U-E modems are optimized for throughputs of up to 108Mbps which provides robust and secure two-way wireless communications in challenging indoor and outdoor environments typical of industrial monitoring and control applications.

Capable of operating in Access Point/Client configuration, functioning as a network Bridge/Router, or serving as a Serial Server (RS232/485), the ELPRO 245U-E modems offer node to node deterministic mesh network repeatability for further range and multiple channel spacing options to increase network scalability. Integrated Modbus server capability allows seamless I/O expansion through the use of ELPRO 115S Expansion modules.

Data Sheets

• 245U-E-G1 Wireless Ethernet modem - Data Sheet
• 245U-E-A1 Wireless Ethernet modem - Data Sheet

The ELPRO 245U-E-G1 & 245U-E-A1 Wireless Ethernet Modems are robust, license-free wireless 802.11 standards compliant transceiver capable of high bandwidth communications. Operating at 5GHz and up to 630mW for the 245U-E-A1 or 2.4GHz and upto 630mW for the 245U-E-G1, the ELPRO 245U-E modems are optimized for throughputs of up to 108Mbps which provides robust and secure two-way wireless communications in challenging indoor and outdoor environments typical of industrial monitoring and control applications.

Capable of operating in Access Point/Client configuration, functioning as a network Bridge/Router, or serving as a Serial Server (RS232/485), the ELPRO 245U-E modems offer node to node deterministic mesh network repeatability for further range and multiple channel spacing options to increase network scalability. Integrated Modbus server capability allows seamless I/O expansion through the use of ELPRO 115S Expansion modules.

Data Sheets

• 245U-E-G1 Wireless Ethernet modem - Data Sheet
• 245U-E-A1 Wireless Ethernet modem - Data Sheet
